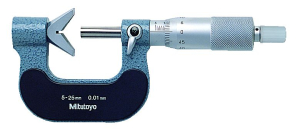

3 Flute V-Anvil Micrometer 10-25mm
Stock Code: MIT114-162
£374.71 (exc VAT) Each Includes your 15% Disc
£449.65 (inc VAT)
Next Day Delivery
Mitutoyo 114-162 Three Flute V-Anvil Micrometer This Digimatic Disc Micrometer allows you to measure a range of different materials. It offers you the following benefits: Non-rotating spindle and disc-shaped measuring surfaces. Measuring the root tangent length of spur and helical gears Measurable range of gear pitch: 0,5-6 module. Suitable for measuring felt, rubber, cardboard, fabric etc.
| Range: |
10 - 25 mm
|
| Remarks: |
-
|
| Accuracy: |
±4 µm
|
| Setting standard: |
167-328 ø 10 mm
|
| Mass: |
280 g
|
| Measuring force: |
5 - 10 N
|
| Graduation: |
0.01 mm
|
| Flatness: |
0,6 µm (spindle) 1,3 µm (anvil)
|
| Measuring surfaces: |
Prism angle 60°/108°
|
| Measuring spindle: |
With spindle lock, ø6,35 mm, spindle pitch 0,75 mm
|
| Delivered: |
Including box, setting standard, key
|
| Digital/Analog: |
Analog
|
| Inch-Metric: |
Metric
|
| Functions: |
For 3-flute cutting tools (60°)
|
