Spline Micrometer 125-150mm, 3mm Measuring Face
Stock Code: MIT111-120
£315.18 (exc VAT) Each Includes your 15% Disc
£378.22 (inc VAT)
Next Day Delivery

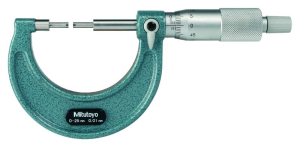

Mitutoyo 111-120 Spline Micrometer This Digimatic Disc Micrometer allows you to measure a range of different materials. It offers you the following benefits: Non-rotating spindle and disc-shaped measuring surfaces. Measuring the root tangent length of spur and helical gears Measurable range of gear pitch: 0,5-6 module. Suitable for measuring felt, rubber, cardboard, fabric etc.
| Range: |
125 - 150 mm
|
| Anvil/ Tip: |
A
|
| Accuracy: |
±4 µm
|
| Mass: |
710 g
|
| Measuring force: |
5 - 10 N
|
| Graduation: |
0.01 mm
|
| Flatness: |
0,3 µm/0.000012"
|
| Parallelism: |
(2+L/100) μm, L = max. range (mm) [0.00008”+0.00004(L/4)]” L = max. range (inch)
|
| Measuring surfaces: |
carbide-tipped, micro-lap finish, stepped
|
| Measuring spindle: |
With spindle lock, Ø 6,35 mm, spindle pitch 0,5 mm
|
| Delivered: |
Including box, setting standard (from 25 mm upward), key
|
| Digital/Analog: |
Analog
|
| Inch-Metric: |
Metric
|
