Digital Solar Indicator ID-SS Inch/Metric, 0,5", 0,0005", Lu
Stock Code: MIT543-506
£124.32 (exc VAT) Each Includes your 15% Disc
£149.18 (inc VAT)
Next Day Delivery

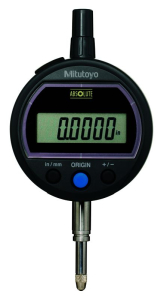

Mitutoyo 543-506 A Mitutoyo digital indicator as compact as a Series 2 dial indicator. ABSOLUTE System scale for error free, high-speed measurement. Functionality includes displaying the result of an internal calculation based on spindle displacement, according to a single-term user-defined formula (Ax), and tolerance judgement.
| Range: |
0.5 inch
|
| Digital step: |
0.0005"/0,01 mm
|
| Accuracy: |
0,03/ 0,00015"
|
| Mass lug/plain: |
150/140 g
|
| Accuracy: |
Refer to the list of specifications (excluding quantizing error)
|
| Scale: |
Capacitance type, absolute linear encoder
|
| Max. response speed: |
Unlimited
|
| Stem Ø: |
8 mm
|
| Contact point: |
Carbide ball, thread M 2.5 x 0.45 mm
|
| Alarm: |
Counting value composition error
|
| Power supply: |
Solar cell usable from 40 Lux illumination
|
| Display: |
LCD character height 9 mm
|
| ORIGIN (ABS-Zero): |
Yes
|
| Digimatic data output: |
Yes
|
| Counting direction switchable: |
Yes
|
| Inch-Metric: |
Inch/Metric
|
