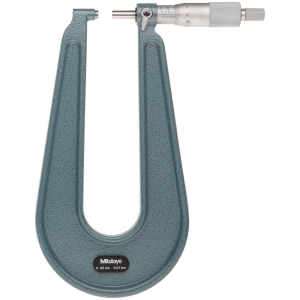

Sheet Metal Micrometer 0-25mm, Flat Anvil/Spindle, 10
Stock Code: MIT118-101
£151.46 (exc VAT) Each Includes your 15% Disc
£181.75 (inc VAT)
Next Day Delivery
Mitutoyo 118-101 Sheet Metal Micrometer This Digimatic Disc Micrometer allows you to measure a range of different materials. It offers you the following benefits: Non-rotating spindle and disc-shaped measuring surfaces. Measuring the root tangent length of spur and helical gears Measurable range of gear pitch: 0,5-6 module. Suitable for measuring felt, rubber, cardboard, fabric etc.
| Range: |
0 - 25 mm
|
| Anvil/ Tip: |
A
|
| Accuracy: |
±4 µm
|
| Mass: |
445 g
|
| Measuring force: |
3 - 8 N
|
| Graduation: |
0,01mm
|
| Flatness: |
0,6 µm for models with 110, 160, 165 mm throat 1 µm for models with 300 mm throat
|
| Parallelism: |
3 µm
|
| Measuring surfaces: |
Carbide-tipped, micro-lap finish
|
| Measuring spindle: |
With spindle lock, throat depth up to 150 mm : ø 6.35 mmthroat depth up to 300 mm : ø 8 mm, spindle pitch 0.5 mm
|
| Delivered: |
Including box, key, setting standard (from 25 mm upward)
|
| Digital/Analog: |
Analog
|
| Inch-Metric: |
Metric
|
