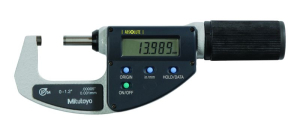

Digital Absolute Micrometer Qu 0-1,2"
Stock Code: MIT293-676
£287.16 (exc VAT) Each Includes your 15% Disc
£344.59 (inc VAT)
Next Day Delivery
Mitutoyo 293-676 This quick-action type micrometer, with a non-rotating spindle, delivers much faster adjustment types than standard models. The ABSOLUTE Digimatic Micrometer QuickMike offers the following benefits: With 10mm feed per revolution (with 0.5mm spindle pitch), it delivers twenty times as fast as standard devices. IP54 protection allows a wider range of operating environments (this only applies when a data cable is not fitted). ABSOLUTE linear scale means no restriction on adjustment speed. It also has a larger measuring range - 30mm compared with 25mm - than standard micrometer.
| Range: |
0 - 1.2 inch
|
| Accuracy: |
±2 µm/0.0001"
|
| Mass: |
275 g
|
| Measuring force: |
5 - 10 N
|
| Digital step: |
0,001 mm / 0,001 mm/0.00005"
|
| Flatness: |
0,3 µm
|
| Parallelism: |
2 µm for models up to 80 mm 3 µm for models up to 105 mm
|
| Measuring surfaces: |
Carbide tipped, micro-lap finish
|
| Measuring spindle: |
ø6,35 mm, non-rotating, 10 mm pitch
|
| Parallelism: |
2 µm /0,00008 " for models up to 80 mm/3,2 " 3 µm/0,00012 " for models up to 105 mm/4,2 "
|
| Battery life: |
approx. 3 years (0-30 mm), 1 year (> 30 mm)
|
| Delivered: |
Including box, setting standard (from 25 mm upward), 1 battery
|
| ORIGIN: |
Yes
|
| ON/OFF: |
Yes
|
| Data output: |
Yes
|
| HOLD: |
Yes
|
| Digital/Analog: |
Digital
|
| Inch-Metric: |
Inch/Metric
|
| Delivered: |
including Box, gauge block (from 25 mm upward), 1 battery
|
