QM Height with Air Floating, I 0-14", 0,00005"/0,0001"/0,0002
Stock Code: MIT518-235
£3079.70 (exc VAT) Each
£3695.64 (inc VAT)
Next Day Delivery

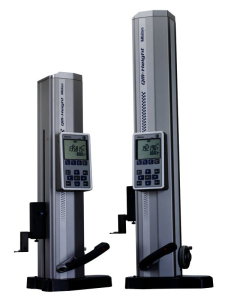

Mitutoyo 518-235 This is a high precision ABSOLUTE digital height gauge that offers you the following benefits: It has a high accuracy, high resolution ABSOLUTE linear encoder for position detection. Types with and without pneumatic drive mechanism Automatic running of prelearnt part programs You can easily implement frequently used measurements, such as inside/outside diameter and pitch calculations, by icon-based commands that also support easy one-key operation. Extraordinary battery life GO/±NG judgement is performed by setting the upper and lower tolerances. Display is mounted fixed to the housing for more comfortable usage. Probe moves independently during measurements.
| Range: |
0-465mm (0-350mm/0-14")
|
| Perpendicularity: |
7µm
|
| Air floating: |
yes
|
| Mass: |
25 kg
|
| Accuracy: |
±(2,4+2,1L/600) µm L = Measuring length (mm)
|
| Repeatability (±2o): |
1,8 µm
|
| Scale: |
ABSOLUTE electromagnetic inductive
|
| Measuring force: |
1,5 ± 0,5 N
|
| Drive method: |
Manual
|
| Guiding method: |
Roller bearing
|
| Power supply: |
alkaline battery size AA LR6 (4pcs.), rechargeable battery size AA Ni-MH (4pcs.),AC-Adapter (optional)
|
| Battery life: |
Approx. 300h (without air floating)Approx. 80h (with air floating)
|
| Measuring function: |
1D measurement: height diameter, pitch, Max/Min/TIR (Max-Min), tolerance, preset, data memory
|
| Display: |
TN monochrome LCD
|
| Digital/Analog: |
Digital
|
