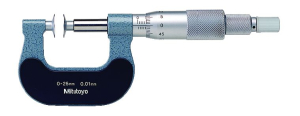

Disc Micrometer, Non-Rotating 0-1", Full Faced, Disk=14,3mm
Stock Code: MIT169-103
£204.87 (exc VAT) Each Includes your 15% Disc
£245.84 (inc VAT)
Next Day Delivery
Mitutoyo 169-103 This Disc Micrometer has a non-rotating spindle and allows you measure a range of different materials. It offers you the following benefits: It features a non-rotating spindle and disc-shaped measuring surfaces. Measuring the root tangent length of spur and helical gears Measurable range of gear pitch: 0,5-6 module It‘s suitable for measuring materials such as felt, rubber, cardboard and fabric.
| Range: |
0 - 1 inch
|
| Accuracy: |
±0.0002"
|
| Mass: |
230 g
|
| Graduation: |
0,01mm
|
| Flatness: |
1 µm
|
| Parallelism: |
4 µm/0.00016 for models up to 50 mm/2" 6 µm/0.00024" for models over 50 mm/2"
|
| Measuring spindle: |
ø 8 mm, spindle pitch 0.5 mm
|
| Measuring force: |
8.02 N ± 0,8 N (169-101), 5 - 10 N
|
| Delivered: |
Including box, key
|
| Digital/Analog: |
Analog
|
| Inch-Metric: |
Inch
|
