Digital Indicator ID-F, BS AC- Inch/Metric, 1", 0,00002", ANS
Stock Code: MIT543-552E
£504.29 (exc VAT) Each Includes your 15% Disc
£605.15 (inc VAT)
Next Day Delivery

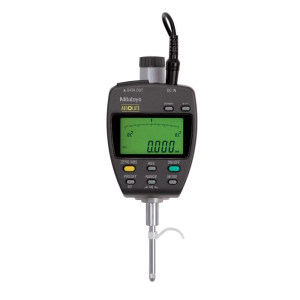

Mitutoyo 543-552E A Mitutoyo back-lit screen type digital indicator, mains-powered. ABSOLUTE System scale for error free, high-speed measurement. Functionality includes an analogue bar scale, switchable resolution, colour-coded tolerance judgement, Max/Min data hold and Runout measurement. SPC data output.
| Accuracy: |
Refer to the list of specifications (excluding quantizing error)
|
| Digital step: |
0,001 mm/0,01 mm
|
| Scale: |
Capacitance type, ABSOLUTE linear encoder
|
| Max. response speed: |
Unlimited
|
| Stem Ø: |
8 mm
|
| Contact point: |
Carbide ball, thread M 2.5 x 0.45 mm
|
| Alarm: |
Counting value composition error, overflow error, tolerance limit setting error
|
| Power supply: |
AC adapter 9V DC, 500mA
|
| Display: |
LCD character height 8,5 mm
|
| ZERO/ABS: |
Yes
|
| GO/±NG judgement: |
Yes
|
| Digimatic data output: |
Yes
|
| Digimatic data input: |
Yes
|
| ON/OFF: |
Yes
|
| Analogue measuring range switchable: |
Yes
|
| Max/Min/Runout value: |
Yes
|
| Lock function: |
Yes
|
| Function lock: |
Yes
|
| PRESET: |
Yes
|
| Counting direction switchable: |
Yes
|
| Selectable resolution: |
Yes
|
| Digital/Analog: |
Digital
|
| Inch-Metric: |
Inch/Metric
|
