Depth Micrometer, Interchangea 0-3", 2,5" Base
Stock Code: MIT129-126
£156.71 (exc VAT) Each Includes your 15% Disc
£188.05 (inc VAT)
Next Day Delivery

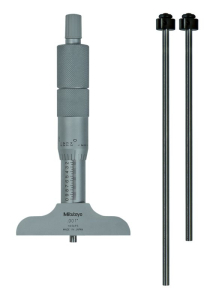

Mitutoyo 129-126 This interchangeable rod type micrometer can be used for wide range measurements. It offers you the following benefits: ø4mm interchangeable rods, with lapped measuring surfaces, enable you to make wide-range measurement. The ratchet stop provides constant measuring force. Measuring rod lock.
| Range: |
0 - 3 inch
|
| Number of rods: |
3
|
| Mass: |
280 g
|
| Measuring force: |
5 - 10 N
|
| Measuring span: |
25 mm
|
| Spindle pitch: |
0,5 mm, with spindle lock
|
| Micrometer Head Feed (0-25 mm): |
±3 µm
|
| Zero point errors of rods: |
±4 µm (0-150 mm)±6 µm (0-300 mm)
|
| Flatness of reference surface (base): |
1,3 µm for 63,5 mm2 µm for 101,6 mm
|
| Flatness of measuring face (rod): |
0.3 µm
|
| Parallelism between measuring face (rod) and reference surface (base): |
(4+ L/50) µm L=max. measuring length (mm)
|
| Measuring surfaces: |
Hardened, precision ground, micro-lap finish
|
| Base: |
Hardened tool steel
|
| Graduation: |
0.01 mm
|
| Scale: |
Thimble and sleeve satin chrome finish ø18 mm
|
| Delivered: |
Including box and key
|
| Digital/Analog: |
Analog
|
| Inch-Metric: |
Inch
|
| Functions: |
Base 2.5 x 0.63"
|
