Universal Micrometer Interchangeable Anvil/Spindle,
Stock Code: MIT116-101
£266.15 (exc VAT) Each Includes your 15% Disc
£319.38 (inc VAT)
Next Day Delivery

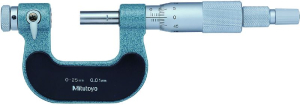

Mitutoyo 116-101 This Universal Micrometer comes with interchangeable tips. It offers you the following benefits: Its non-rotating spindle accepts seven forms of optional interchangeable anvil/spindle tip (including flat, spline, spherical, point, knife-edge, disc, and blade) allowing you to use it in a wide range of applications. Optional anvils/spindle-tips for screw thread measurement (matching V and cone) are also available.
| Range: |
0 - 25 mm
|
| Accuracy: |
±4 µm
|
| Mass: |
250 g
|
| Measuring force: |
5 - 10 N
|
| Graduation: |
0.01mm
|
| Measuring spindle: |
Ø 8 mm, spindle pitch 0.5 mm
|
| Delivered: |
Including box, plain and 60° thread setting standard (from 25 mm upward), key Interchangeable anvils/spindle-tips not included
|
| Digital/Analog: |
Analog
|
| Spindle feed error: |
3 µm
|
| Inch-Metric: |
Metric
|
