Digital Micrometer Interchange Inch/Metric,12-18", incl. 6 An
Stock Code: MIT340-720
£1164.42 (exc VAT) Each Includes your 15% Disc
£1397.30 (inc VAT)
Next Day Delivery

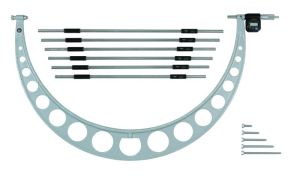

Mitutoyo 340-720 This Digimatic Micrometer offers you an extra wide measuring range, and has the following benefits: Easy, interchangeable anvils allow a wide range of measurements. Ratchet stop for constant force.
| Range: |
12 - 18 inch
|
| Interchangeable anvils: |
6
|
| Mass: |
3.5 kg
|
| Digital step: |
0.0001"/0,001 mm
|
| Scale: |
thimble and sleeve satin chrome finish ø 18 mm (up to 300 mm), ø 21 mm (over 300 mm)
|
| Flatness: |
0,6 µm, 1 µm (over 300 mm)
|
| Parallelism: |
2µm/0.00008" for models up to 75mm/3”, 3μm/.00012” for models up to 150mm/6”, (2+R/100)μm for models over 150mm, R = max. range (mm) ±[.00008”+.00004(R/4)]” For models over 6” R = max. range (inch)
|
| Measuring surfaces: |
hardened, lapped (Anvil), carbide tipped, lapped (Spindle side)
|
| Measuring spindle: |
ø 6,35 mm (up to 300 mm), ø 8 mm (over 300 mm), spindle pitch 0,5 mm, with spindle lock
|
| Battery life: |
approx. 2.4 years, approx. 1.8 years (over 300 mm)
|
| Measuring force: |
5-10 N, 10-14 N (over 300 mm)
|
| Delivered: |
including box, gauge block, inserts, key, 1 battery
|
| ZERO/ABS: |
Yes
|
| ON: |
Yes
|
| Auto Power OFF after 20 min. non use: |
Yes
|
| 2 x PRESET: |
Yes
|
| Function lock: |
Yes
|
| Data output: |
Yes
|
| HOLD: |
Yes
|
| Digital/Analog: |
Digital
|
| Inch-Metric: |
Inch/Metric
|
