Outside Micrometer Interchange 18-24"
Stock Code: MIT104-202
£801.96 (exc VAT) Each Includes your 15% Disc
£962.35 (inc VAT)
Next Day Delivery

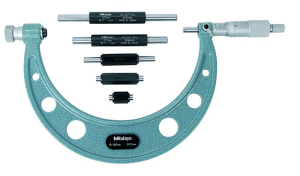

Mitutoyo 104-202 This Outside Micrometer offers you an extra wide measuring range, and has the following benefits: Easy, interchangeable anvils allow a wide range of measurements. Ratchet stop for consistent measurements.
| Range: |
18 - 24 inch
|
| Interchangeable anvils: |
6
|
| Mass: |
6.52 kg
|
| Graduation: |
0.01 mm
|
| Scale: |
Thimble and sleeve satin chrome finish ø 18 mm (up to 300 mm) ø 21 mm (over 300 mm)
|
| Flatness: |
0,6 µm/0.000024" for models up to 300 mm/12" 1 µm/0.00004" for models over 300 mm/12"
|
| Parallelism: |
2 µm/0.00008" for models up to 75 mm/3” 3 μm/0.00012” for models up to 150 mm/6” (2+L/100) μm for models over 150 mm L = max. range (mm) ±[0.00008”+0.00004(L/4)]” for models over 6” L = max. range (inch)
|
| Measuring surfaces: |
Hardened, lapped (Anvil), carbide tipped, lapped (Spindle side)
|
| Measuring spindle: |
ø 6,35 mm (up to 300 mm) ø 8 mm (over 300 mm) Spindle pitch 0,5 mm with spindle lock
|
| Measuring force: |
5-10 N (10-14 N for measuring range of 300 mm and more)
|
| Delivered: |
Including box, gauge block, inserts, key
|
| Digital/Analog: |
Analog
|
| Inch-Metric: |
Inch
|
