Outside Micrometer Interchange 150-300mm
Stock Code: MIT104-136A
£494.66 (exc VAT) Each Includes your 15% Disc
£593.59 (inc VAT)
Next Day Delivery

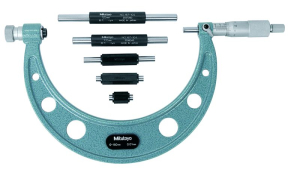

Mitutoyo 104-136A This Outside Micrometer offers you an extra wide measuring range, and has the following benefits: Easy, interchangeable anvils allow a wide range of measurements. Ratchet stop for consistent measurements.
| Range: |
150 - 300 mm
|
| Interchangeable anvils: |
6
|
| Setting standard: |
6
|
| Mass: |
2.65 kg
|
| Graduation: |
0.01 mm
|
| Scale: |
Thimble and sleeve satin chrome finish ø 18 mm (up to 300 mm) ø 21 mm (over 300 mm)
|
| Flatness: |
0,6 µm/0.000024" for models up to 300 mm/12" 1 µm/0.00004" for models over 300 mm/12"
|
| Parallelism: |
2 µm/0.00008" for models up to 75 mm/3” 3 μm/0.00012” for models up to 150 mm/6” (2+L/100) μm for models over 150 mm L = max. range (mm) ±[0.00008”+0.00004(L/4)]” for models over 6” L = max. range (inch)
|
| Measuring surfaces: |
hardened, precision ground, micro-lap finish
|
| Measuring spindle: |
Ø 6,35 mm, Spindle pitch 0,5 mm with spindle lock
|
| Measuring force: |
5-10 N, 10-14 N (over 300 mm)
|
| Delivered: |
Including box, gauge block, inserts, key
|
| Digital/Analog: |
Analog
|
| Inch-Metric: |
Metric
|
