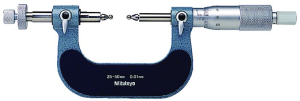

Gear Tooth Micrometer 25-50mm
Stock Code: MIT124-174
£293.29 (exc VAT) Each Includes your 15% Disc
£351.95 (inc VAT)
Next Day Delivery
Mitutoyo 124-174 This Interchangeable anvil gear tooth micrometer are intended for making over-pin diameter measurements on gears using precision ball anvils/spindle tips. Interchangeable steel (or carbide) ball anvil/spindle tips for various gear modules (0.5-5.25) are optional. Equipped with ratchet stop for constant measuring force.
| Range: |
25 - 50 mm
|
| Accuracy: |
±4 µm
|
| Mass: |
400 g
|
| Measuring force: |
5 - 10 N
|
| Digital step: |
0,001 mm / 0,001 mm/0.00005" (digimatic model)
|
| Graduation: |
0,01 mm
|
| Scale: |
Thimble and sleeve satin chrome finish, ø18 mm
|
| Measuring spindle: |
ø6,35 mm
|
| Delivered: |
Including box, setting standard (from 25 mm upward), key, interchangeable anvils/spindle tips not included
|
| Digital/Analog: |
Analog
|
| Inch-Metric: |
Metric
|
| Functions: |
Analog model
|
