Digital Indicator ID-C, Low Fo Inch/Metric, 0,5", 0,00005", F
Stock Code: MIT543-395B
£351.95 (exc VAT) Each Includes your 15% Disc
£422.34 (inc VAT)
Next Day Delivery

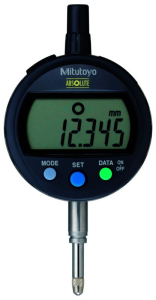

Mitutoyo 543-395B A Mitutoyo digital indicator of similar size to a Series 2 type dial indicator. ABSOLUTE System scale for error free, high-speed measurement. Functionality includes displaying the result of an internal calculation based on spindle displacement, according to a single-term user-defined formula (Ax), and tolerance judgement. SPC data output.
| No. Lug back plate: |
543-395
|
| Range: |
0.5 inch
|
| Digital step: |
0.00005"/0.0001"/0.005"/0,001 mm/0,01 mm
|
| Remarks: |
Low force
|
| Accuracy: |
0,003 mm/ 0.0001"
|
| Measuring force: |
0,4-0,7 N
|
| Mass: |
170 g
|
| Accuracy: |
Refer to the list of specifications (excluding quantizing error)
|
| Scale: |
Capacitance type, ABSOLUTE linear encoder
|
| Max. response speed: |
Unlimited
|
| Stem Ø: |
8 mm
|
| Contact point: |
Carbide ball, thread M 2.5 x 0.45 mm
|
| Alarm: |
Low voltage, counting value composition error, overflow error, tolerance limit setting error
|
| Power supply: |
1 battery SR-44
|
| Battery life: |
approx. 7000 hours
|
| Display: |
LCD character height 11 mm Rotatable 330°
|
| ZERO/ABS: |
Yes
|
| GO/±NG judgement: |
Yes
|
| Digimatic data output: |
Yes
|
| ON/OFF: |
Yes
|
| Lock function: |
Yes
|
| PRESET: |
Yes
|
| Counting direction switchable: |
Yes
|
| Calculation function: |
Yes
|
| Selectable resolution*: |
Yes
|
| Inch-Metric: |
Inch/Metric
|
