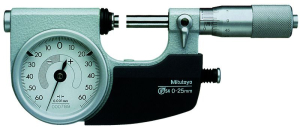

Indicating Micrometer with But 0-1"
Stock Code: MIT510-131
£627.73 (exc VAT) Each Includes your 15% Disc
£753.28 (inc VAT)
Next Day Delivery
Mitutoyo 510-131 This is a Micrometer screw with a dial comparator that enables you to take fast and highly accurate measurements. It offers the following benefits: A self-setting micrometer gauge lets you take rapid measurement of workpieces, especially cylindrical shapes, in batch or mass production situations. In the 25mm measuring range, the model line-up offers a choice of having the anvil retraction button positioned on the left or the right. Large dial comparator for easy reading (+/- 0.06mm). Tolerance markers for GO/NG measurements. 8mm spindle diameter gives you easy positioning and highly accurate measurements.
| Range: |
0 - 1 inch
|
| Anvil retracting stroke: |
2 mm
|
| Indicating range: |
±0.0023"
|
| Operating button: |
Right
|
| Mass: |
520 g
|
| Measuring force: |
5 - 10 N
|
| Graduation: |
0.001 mm
|
| Graduation dial comparator: |
0,001 mm
|
| Accuracy micrometer: |
2 µm
|
| Accuracy dial comparator: |
1 μm
|
| Flatness: |
0,3 μm
|
| Parallelism: |
0,6 μm for models up to 50 mm 1 μm for models over 50 mm
|
| Measuring surfaces: |
carbide-tipped, micro-lap finish, ø 8 mm
|
| Delivered: |
Including box, key
|
| Digital/Analog: |
Analog
|
| Inch-Metric: |
Inch
|
