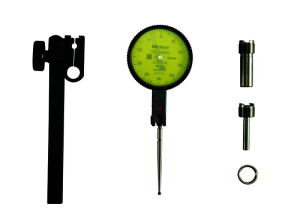

Dial Test Indicator, Horizonta 1mm, 0,01mm, 4/8mm Stem, with
Stock Code: MIT513-415T
£131.32 (exc VAT) Each Includes your 15% Disc
£157.58 (inc VAT)
Next Day Delivery
Mitutoyo 513-415T Drastically enhanced durability, sensitivity and visibility. Glare-free flat crystal face allows easy reading of graduations. Preventing dust and oil from penetrating to the dial face. The O-ring seal on the bezel has the effect of providing smooth rotation and prevents dust and oil from penetrating through to the dial face. Multi-layer coatings on the Crystal. Hard and non-glare coatings on the crystal inhibit scratches, contamination and glare on the surface. Jewelled bearings and precision gears and pinions give you smooth, accurate movement and quick response.
| Range: |
1 mm
|
| Graduation: |
0.01 mm
|
| Scale: |
0-50-0
|
| fe: |
10 µm
|
| fu: |
4 µm
|
| fges: |
13 µm
|
| Measuring force: |
≤ 0,2 N
|
| Carbide stylus tip ø2 mm No.: |
136013
|
| Mass: |
42 g
|
| Contact point: |
Thread M 1,7 x 0,35
|
| Delivered: |
In box with clamping shaft ø8 mm
|
| Jeweled bearing: |
Yes
|
| Anti-magnet: |
Yes
|
| Inch-Metric: |
Metric
|
| Functions: |
Full set
|
