Bore Gauge for Extra Small Hol 0,037-0,061", with Indicator 0
Stock Code: MIT526-176
£1742.24 (exc VAT) Each Includes your 15% Disc
£2090.69 (inc VAT)
Next Day Delivery

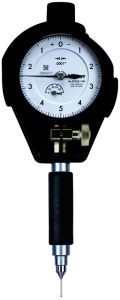

Mitutoyo 526-176 This is a two point split contact point ideally suited to smaller bore measurements. It offers you the following benefits: A precision bore gauge so you can make quick and accurate measurements of small hole diameters (0.95-18 mm). You can replace the analogue indicator fitted to this instrument with a customer-supplied Digimatic indicator if you need. The contact point is hard chrome finish
| Range: |
0.037 - 0.061 mm
|
| Graduation: |
.0001"
|
| No. Dial Indicator: |
2923SB-10
|
| Measuring depth: |
.45"
|
| Number of anvils: |
5
|
| Accuracy: |
4 µm 6 µm for range 10-18 mm
|
| Repeatability: |
2 µm
|
| Delivered: |
In box including plastic cover for Dial Indicator
|
| Digital/Analog: |
Analog
|
| Inch-Metric: |
Inch
|
No detailed specifications are available for this product.
There are no downloads for this product.
There are no reviews for this product yet. Be the first to add one!
