Offers
Disc Micrometer, Hardened Stee 50-75mm, Disk=20mm
Stock Code: MIT123-103
£246.02 (exc VAT) Each Includes your 15% Disc
£295.22 (inc VAT)
Next Day Delivery

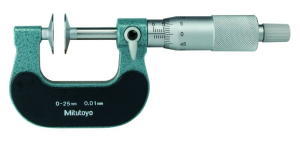

Mitutoyo 123-103 This Disc Micrometer enables you to measure hard-to-reach features, offering you the following benefits: Measuring the root tangent length of spur and helical gears. You can measure recessed features that are difficult to reach with a standard micrometer.
| Range: |
50 - 75 mm
|
| Accuracy: |
±6 µm
|
| Mass: |
300 g
|
| Measuring force: |
5 - 10 N
|
| Graduation: |
0.01 mm
|
| Flatness: |
1 µm/0.00004" for models up to 100 mm/4" 1,6 µm/0.000063" for models over 100 mm/4"
|
| Parallelism: |
4 µm for models up to 50 mm 6 µm for models up to 100 mm (5+L/75) µm for models over 100 mm L = max. range (mm)
|
| Measuring spindle: |
With spindle lock, spindle pitch 0.5 mm
|
| Measurable module: |
0.5-6 (0.7-11 : models over 100 mm)
|
| Delivered: |
Including box, gauge block (from 25 mm upward), insulation, key
|
| Digital/Analog: |
Analog
|
| Inch-Metric: |
Metric
|
