Digital 3 Flute V-Anvil Microm 0,05-0,6"
Stock Code: MIT314-361-30
£642.62 (exc VAT) Each Includes your 15% Disc
£771.14 (inc VAT)
Next Day Delivery

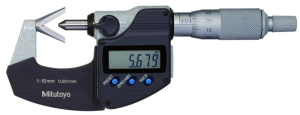

Mitutoyo 314-361-30 Digimatic V-Anvil Micrometer This Digimatic Disc Micrometer allows you to measure a range of different materials. It offers you the following benefits: Non-rotating spindle and disc-shaped measuring surfaces. Measuring the root tangent length of spur and helical gears Measurable range of gear pitch: 0,5-6 module. Suitable for measuring felt, rubber, cardboard, fabric etc.
| Range: |
0.05 - 0.6 inch
|
| Remarks: |
-
|
| Accuracy: |
±4 µm/0.0002"
|
| Mass: |
275 g
|
| Digital step: |
0,001 mm
|
| Scale: |
Thimble and sleeve satin chrome finish, ø 18 mm
|
| Flatness: |
0,3 µm (spindle) 1 µm (anvil)
|
| Measuring surfaces: |
Prism angle 60°
|
| Measuring spindle: |
ø 6,35 mm, spindle pitch 0,75 mm with spindle lock
|
| Battery life: |
approx. 2.4. years
|
| Measuring force: |
5-10 N / 3-8 N (1-15 mm)
|
| Delivered: |
Including box, setting standard, key, 1 battery
|
| ZERO/ABS: |
Yes
|
| Auto Power OFF after 20 min. non use: |
Yes
|
| 2 x PRESET: |
Yes
|
| Function lock: |
Yes
|
| Data output: |
Yes
|
| HOLD: |
Yes
|
| Digital/Analog: |
Digital
|
| Parallelism: |
(3+L/75) µm
|
| Inch-Metric: |
Inch/Metric
|
No detailed specifications are available for this product.
There are no downloads for this product.
There are no reviews for this product yet. Be the first to add one!
