ABS Digital Thickness Gauge Inch/Metric, 0-0,47", 0,00005"
Stock Code: MIT547-400S
£620.73 (exc VAT) Each Includes your 15% Disc
£744.88 (inc VAT)
Next Day Delivery

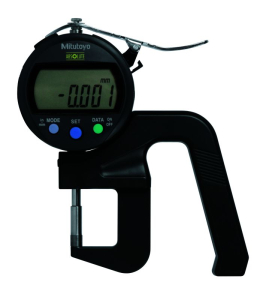

Mitutoyo 547-400S A Mitutoyo high-resolution digital-indicator based instrument designed for quick and efficient measurement of small dimensions. Ideally suited for precise measurement of the thickness of paper, film, wire, sheet metal and similar materials. The convenient grip handle, thumb trigger and spring-loaded plunger make the instrument easy to use.
| Range: |
0 - 0.47 inch
|
| Digital step: |
0.0005"/0.0001"/0.00005"/0,01 mm/0,001 mm
|
| Indicator No.: |
543-392BS (ID-C)
|
| Max. measuring depth: |
21 mm
|
| Mass: |
290 g
|
| Accuracy: |
±3 µm(excluding quantizing error)
|
| Measuring force: |
≤ 3,5 N
|
| Scale: |
Capacitance type ABSOLUTE linear encoder
|
| Parallelism: |
3
|
| Max. response speed: |
Unlimited
|
| Contact point: |
M 2,5 x 0,45 mm (ISO/JIS type)carbide tip
|
| Alarm: |
Low voltage, counting value composition error, overflow error, tolerance limit setting error
|
| Power supply: |
1 battery SR-44
|
| Battery life: |
approx. 7000 hours
|
| ZERO/ABS: |
Yes
|
| GO/±NG judgement: |
Yes
|
| Digimatic data output: |
Yes
|
| ON/OFF: |
Yes
|
| DATA/HOLD: |
Yes
|
| Lock function: |
Yes
|
| PRESET: |
Yes
|
| Counting direction switchable: |
Yes
|
| Calculation function: |
Yes
|
| Inch-Metric: |
Inch/Metric
|
| Functions: |
with indicator (ANSI/AGD type)
|
