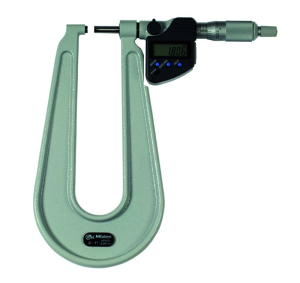

Digital Sheet Metal Micrometer Inch/Metric, 1-2", Spherical A
Stock Code: MIT389-362
£613.73 (exc VAT) Each Includes your 15% Disc
£736.48 (inc VAT)
Next Day Delivery
Mitutoyo 389-362 Digimatic Sheet Metal Micrometer This Digimatic Disc Micrometer allows you to measure a range of different materials. It offers you the following benefits: Non-rotating spindle and disc-shaped measuring surfaces. Measuring the root tangent length of spur and helical gears Measurable range of gear pitch: 0,5-6 module. Suitable for measuring felt, rubber, cardboard, fabric etc.
| Range: |
1 - 2 inch
|
| Anvil/ Tip: |
B
|
| Accuracy: |
±4µm /0.0002"
|
| IP65: |
Yes
|
| Mass: |
920 g
|
| Measuring force: |
3 - 8 N
|
| Digital step: |
0,001 mm
|
| Measuring force: |
3-8, 10-14 (389-514) N
|
| Scale: |
Thimble and sleeve satin chrome finish, ø18 mm
|
| Flatness: |
0,6 µm/0.000024" for models with 150 mm/6" throat 1 µm/0.00004" for models with 300 mm/12" throat
|
| Parallelism: |
3 µm/0.00012"
|
| Measuring surfaces: |
Carbide tipped, micro-lap finish
|
| Measuring spindle: |
ø6,35 mm, spindle pitch 0,5 mm, with spindle lock
|
| Battery life: |
approx. 2.4 years, approx. 1.8 years (389-514)
|
| Delivered: |
Including box, key, 1 battery/ 2 batteries (389-514)
|
| ORIGIN: |
Yes
|
| ZERO/ABS: |
Yes
|
| Auto Power OFF after 20 min. non use: |
Yes
|
| 2 x PRESET: |
Yes
|
| Function lock: |
Yes
|
| Data output: |
Yes
|
| HOLD: |
Yes
|
| Digital/Analog: |
Digital
|
| Inch-Metric: |
Inch/Metric
|
