Digital Disc Micrometer Inch/Metric, 1-2", Non-Rotatin
Stock Code: MIT369-351-30
£719.66 (exc VAT) Each Includes your 15% Disc
£863.59 (inc VAT)
Next Day Delivery

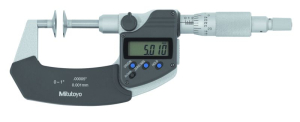

Mitutoyo 369-351-30 Digimatic Non-Rotating Spindle Disc Micrometer This Digimatic Disc Micrometer allows you to measure a range of different materials. It offers you the following benefits: Non-rotating spindle and disc-shaped measuring surfaces. Measuring the root tangent length of spur and helical gears Measurable range of gear pitch: 0,5-6 module. Suitable for measuring felt, rubber, cardboard, fabric etc.
| Range: |
1 - 2 inch
|
| Accuracy: |
±4 µm/0.0002"
|
| Mass: |
480 g
|
| Measuring force: |
3 - 8 N
|
| Digital step: |
0,001 mm
|
| Scale: |
Thimble and sleeve satin chrome finish, ø18 mm
|
| Flatness: |
1 µm/0.00004"
|
| Parallelism: |
4 µm/0.00016" for models up to 50 mm/2" 6 µm/0.00024" for models over 50 mm/2"
|
| Measuring spindle: |
ø6.35 mm, spindle pitch 0,5 mm, with spindle lock
|
| Battery life: |
approx. 2.4 years
|
| Delivered: |
Including box, setting standard (from 25 mm upward), key, 1 battery
|
| ORIGIN: |
Yes
|
| ZERO/ABS: |
Yes
|
| Auto Power OFF after 20 min. non use: |
Yes
|
| Function lock: |
Yes
|
| Data output: |
Yes
|
| HOLD: |
Yes
|
| Digital/Analog: |
Digital
|
| Spindle pitch: |
Spindle pitch 0,5 mm, with spindle lock
|
| Measurable module: |
0.5-6
|
| Inch-Metric: |
Inch/Metric
|
