Digital Disc Micrometer IP65 Inch/Metric, 1-2", Disk=20mm
Stock Code: MIT323-351-30
£544.56 (exc VAT) Each Includes your 15% Disc
£653.47 (inc VAT)
Next Day Delivery

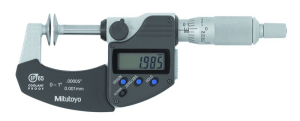

Mitutoyo 323-351-30 This Digimatic Disc Micrometer enables you to measure hard-to-reach features, offering you the following benefits: Measuring the root tangent length of spur and helical gears. You can measure recessed features that are difficult to reach with a standard micrometer.
| Range: |
1 - 2 inch
|
| Accuracy: |
±4 µm/0.0002"
|
| Mass: |
355 g
|
| Measuring force: |
3 - 8 N
|
| Digital step: |
0,001 mm
|
| Scale: |
Thimble and sleeve satin chrome finish, ø18 mm
|
| Flatness: |
1 µm
|
| Parallelism: |
4 µm/0.00016" for models up to 50 mm/2" (4+L/50) µm for models up to 100 mm L = max. range (mm) 0.00024" for models up to 4"
|
| Measuring spindle: |
ø6,35 mm, spindle pitch 0,5 mm, with spindle lock
|
| Measurable module: |
0.5-6
|
| Battery life: |
approx. 2.4 years
|
| Delivered: |
Including box, setting standard (from 25 mm upward), key, 1 battery
|
| ORIGIN: |
Yes
|
| ZERO/ABS: |
Yes
|
| Auto Power OFF after 20 min. non use: |
Yes
|
| Function lock: |
Yes
|
| Data output: |
Yes
|
| HOLD: |
Yes
|
| Digital/Analog: |
Digital
|
| Spindle pitch: |
Ø 6.35 mm, spindle pitch 0.5 mm, with spindle lock
|
| Inch-Metric: |
Inch/Metric
|
