Digital Indicator ID-B, IP66, Inch/Metric, 0,2", 0,0005"
Stock Code: MIT543-581
£232.88 (exc VAT) Each Includes your 15% Disc
£279.46 (inc VAT)
Next Day Delivery

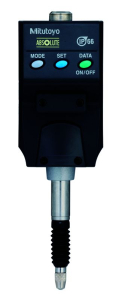

Mitutoyo 543-581 A Mitutoyo slim-style dustproof and waterproof digital indicator suitable for use in the presence of coolant or cutting oil. ABSOLUTE System scale for error free, high-speed measurement. Functionality includes switchable resolution, tolerance judgement, data hold and readout rotation. SPC data output
Range: |
0.2 inch
|
Digital step: |
0.0005"/0,01 mm
|
Accuracy: |
0,02 mm/0.0008"
|
Measuring force: |
≤ 2,0 N
|
Mass: |
130 g
|
Accuracy: |
Refer to the list of specifications
|
Scale: |
Capacitance type, ABSOLUTE linear encoder
|
Max. response speed: |
Unlimited
|
Alarm: |
Low voltage, counting value composition error, overflow error, tolerance limit setting error
|
Power supply: |
1 battery SR-44
|
Battery life: |
approx. 7000 hours
|
Display: |
LCD, character height: 6,2 mm
|
Stem Ø: |
9,52 mm
|
Contact point: |
Carbide ball, thread 4.0-48.0 UNF
|
GO/±NG judgement: |
Yes
|
Digimatic data output: |
Yes
|
ON/OFF: |
Yes
|
DATA/HOLD: |
Yes
|
External PRESET/ZERO: |
Yes
|
PRESET: |
Yes
|
Counting direction switchable: |
Yes
|
Selectable resolution*: |
Yes
|
Digital/Analog: |
Digital
|
Inch-Metric: |
Inch/Metric
|
Functions: |
ANSI/AGD type
|
No detailed specifications are available for this product.
