ABS Digital Thickness Gauge 0-12mm, 0,001mm
Stock Code: MIT547-401
£620.73 (exc VAT) Each Includes your 15% Disc
£744.88 (inc VAT)
Next Day Delivery

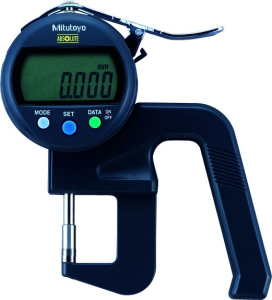

Mitutoyo 547-401 For measuring film, paper, etc., with a resolution of 0,001 mm.
Range: |
0 - 12 mm
|
Digital step: |
0,01 mm/0,001 mm
|
Indicator No.: |
543-390BS (ID-C)
|
Max. measuring depth: |
21 mm
|
Mass: |
290 g
|
Accuracy: |
±3 µm(excluding quantizing error)
|
Measuring force: |
≤ 3,5 N
|
Scale: |
Capacitance type ABSOLUTE linear encoder
|
Parallelism: |
3
|
Max. response speed: |
Unlimited
|
Contact point: |
M 2,5 x 0,45 mm (ISO/JIS type)carbide tip
|
Alarm: |
Low voltage, counting value composition error, overflow error, tolerance limit setting error
|
Power supply: |
1 battery SR-44
|
Battery life: |
approx. 7000 hours
|
ZERO/ABS: |
Yes
|
GO/±NG judgement: |
Yes
|
Digimatic data output: |
Yes
|
ON/OFF: |
Yes
|
DATA/HOLD: |
Yes
|
Lock function: |
Yes
|
PRESET: |
Yes
|
Counting direction switchable: |
Yes
|
Calculation function: |
Yes
|
Inch-Metric: |
Metric
|
